HOLLOW FIBER
MEMBRANES
Compact, Efficient, Reliable Filtration
High-surface area, low-pressure filtration for
domestic and industrial applications.
- Our Products

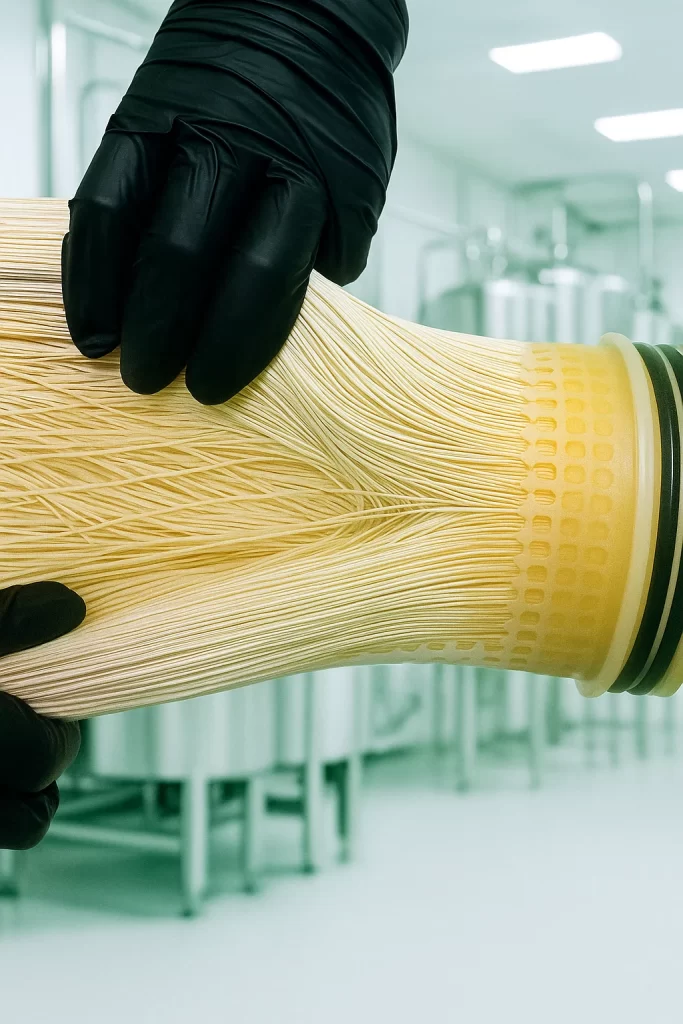

Hollow Fiber Filtration Technology
Hollow fiber membranes are a type of ultrafiltration (UF) membrane in which thousands of fine fibers form a compact module. Water or process liquid passes through the porous fiber walls, allowing clean permeate to flow inside while retaining suspended solids, bacteria, viruses, and other impurities outside. This makes hollow fiber technology highly efficient for both domestic and industrial water treatment applications.
Typical pore size: 0.01–0.1 μm, ensuring removal of bacteria, viruses, and turbidity.
Operates under low transmembrane pressure, saving energy compared to other filtration methods.
Provides high surface area per module, resulting in compact system designs.
Can be operated with outside-in or inside-out flow depending on application.
With their compact design, high reliability, and long service life, hollow fiber membranes have become one of the most widely used ultrafiltration solutions worldwide. They are suitable for both small-scale domestic systems and large industrial plants, offering consistent water quality with minimal maintenance.
At Osmotech, we provide advanced hollow fiber membrane modules designed to deliver optimum performance across diverse applications — from safe drinking water to complex industrial processes.
Applications of Hollow Fiber Membranes
Drinking water purification
Municipal wastewater reuse
Food & beverage (juice, beer, dairy clarification)
Process and waste water treatment.
Biopharmaceutical processes (sterile filtration)
Industrial process water treatment
Seawater pretreatment before RO
Domestic Applications
Hollow fiber membranes are widely used in residential and small-scale systems for:
Drinking water purification at home
Point-of-use (POU) and point-of-entry (POE) filters
Household water softening and pre-treatment
Protection of RO systems from bacteria and suspended solids
Industrial Applications
In industrial and municipal projects, hollow fiber membranes provide scalable and cost-effective water treatment for:
Municipal wastewater reuse
Process and cooling water treatment
Food & beverage (juice, dairy, brewing, bottling)
Pharmaceutical & biotech sterile filtration
Pretreatment for seawater desalination (before RO)
Technical Specifications of
Hollow Fiber Membranes
Our hollow fiber membrane modules are engineered for high-performance water and wastewater treatment. Below are the standard specifications for our modules.
| Parameter | Specification Range |
|---|---|
| Membrane Material | Polyethersulfone (PES) / PVDF |
| Pore Size | 0.01 – 0.1 μm |
| Outer Diameter of Fibers | 0.6 – 2.0 mm |
| Effective Membrane Area | 4 – 70 m² per module |
| Operating Pressure | 0.1 – 0.4 MPa |
| Operating pH Range | 2 – 10 (cleaning pH 1–12) |
| Operating Temperature | 5 – 45 °C |
| Typical Applications | Drinking water, municipal reuse, food & beverage, biopharma |
